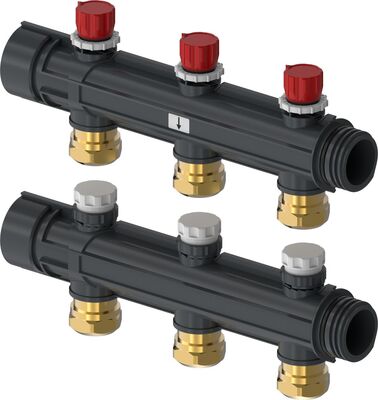

Uponor Magna collettore 1"1/2 attacco Dim 25 FM

1121536Uponor Magna manifold segment w. valve 2X 25 mm FM1121537Uponor Magna manifold segment w. valve 3X 25 mm FM2x 1121536Uponor Magna manifold segment w. valve 4X 25 mm FM1121536; 1121537Uponor Magna manifold segment w. valve 5X 25 mm FM2x 1121537Uponor Magna manifold segment w. valve 6X 25 mm FM2x 1121537; 1121535Uponor Magna manifold segment w. valve 7X 25 mm FM1121536; 2x 1121537Uponor Magna manifold segment w. valve 8X 25 mm FM3x 1121537Uponor Magna manifold segment w. valve 9X 25 mm FM3x 1121537; 1121535Uponor Magna manifold segment w. valve 10X 25 mm FM3x 1121537; 1121536Uponor Magna manifold segment w. valve 11X 25 mm FM4x 1121537Uponor Magna manifold segment w. valve 12X 25 mm FM4x 1121537; 1121535Uponor Magna manifold segment w. valve 13X 25 mm FM4x 1121537; 1121536Uponor Magna manifold segment w. valve 14X 25 mm FM5x 1121537Uponor Magna manifold segment w. valve 15X 25 mm FM5x 1121537; 1121535Uponor Magna manifold segment w. valve 16X 25 mm FM5x 1121537; 1121536Uponor Magna manifold segment w. valve 17X 25 mm FM6x 1121537Uponor Magna manifold segment w. valve 18X 25 mm FM6x 1121537; 1121535Uponor Magna manifold segment w. valve 19X 25 mm FM6x 1121537; 1121536Uponor Magna manifold segment w. valve 20X 25 mm FM
Formati disponibili: rfa, dwg 2D, dwg 3D, dxf, ifc, sat, fbx, obj.

Dettagli del prodotto

Identity data
Codice Prodotto
5x 1121537
EAN
5x 6414905660421
ETIM Class
EC010292
Data
Peso [kg]
9.93
Quantità Confezione 1
5x 1
Quantità Confezione 2
5x 60
Confezione
pz
BIM Data
IFC Export As
IfcDistributionFlowElementType
IFC Export Type
n/a
Classificazione Uniclass Pr Numero
Pr_65_54_95_92
Classificazione Uniclass Pr Descrizione
Underfloor heating and cooling manifolds
Classificazione OmniClass 23 Numero
23.75.70.00
Classificazione OmniClass 23 Descrizione
HVAC Distribution Devices
Classificazione UniFormat 2010 Numero
D3020
Classificazione UniFormat 2010 Descrizione
Heating Systems
Revisione
1.0
