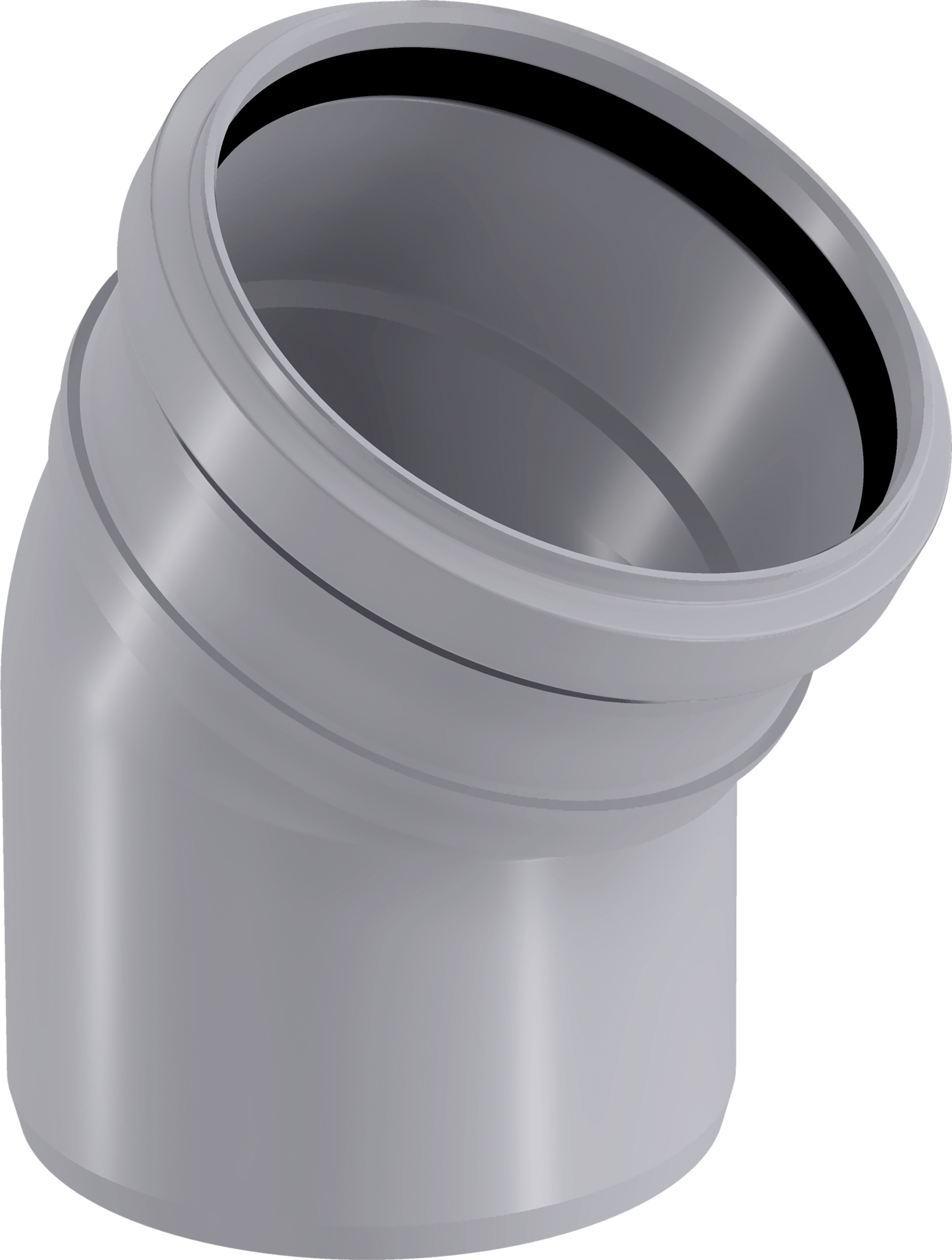

Uponor Soil&Waste Bend

1051169SOIL&WASTE BEND 32 15 DEG1051174SOIL&WASTE BEND 32 30 DEG1051181SOIL&WASTE BEND 32 45 DEG1051186SOIL&WASTE BEND 32 88,5 DEG1051171SOIL&WASTE BEND 50 15 DEG1051176SOIL&WASTE BEND 50 30 DEG1051183SOIL&WASTE BEND 50 45 DEG1051188SOIL&WASTE BEND 50 88,5 DEG1053717SOIL&WASTE BEND 75 15 DEG1051177SOIL&WASTE BEND 75 30 DEG1053720SOIL&WASTE BEND 75 45 DEG1051189SOIL&WASTE BEND 75 88,5 DEG1053721SOIL&WASTE BEND 110 45 DEG1051190SOIL&WASTE BEND 110 88,5 DEG
Available formats: rfa, dwg 2D, dwg 3D, dxf, ifc, sat, fbx, obj.

Product details

Identity data
Manufacturer Part Number
1051174
EAN
6414904211150
ETIM Class
EC003024
LVI
2440011
Data
Weight [kg]
0.02
Packing Quantity 1
80
Packing Quantity 2
3840
Packing Units
pce
BIM Data
IFC Export As
IfcPipeFittingType
IFC Export Type
BEND
Classification Uniclass Pr Number
Pr_65_52_63
Classification Uniclass Pr Description
Pipes and fittings
Classification OmniClass 23 Number
23.27.43.00
Classification OmniClass 23 Description
Pipe Fittings
Classification UniFormat 2010 Number
D2020
Classification UniFormat 2010 Description
Sanitary Drainage
Revision
1.0
