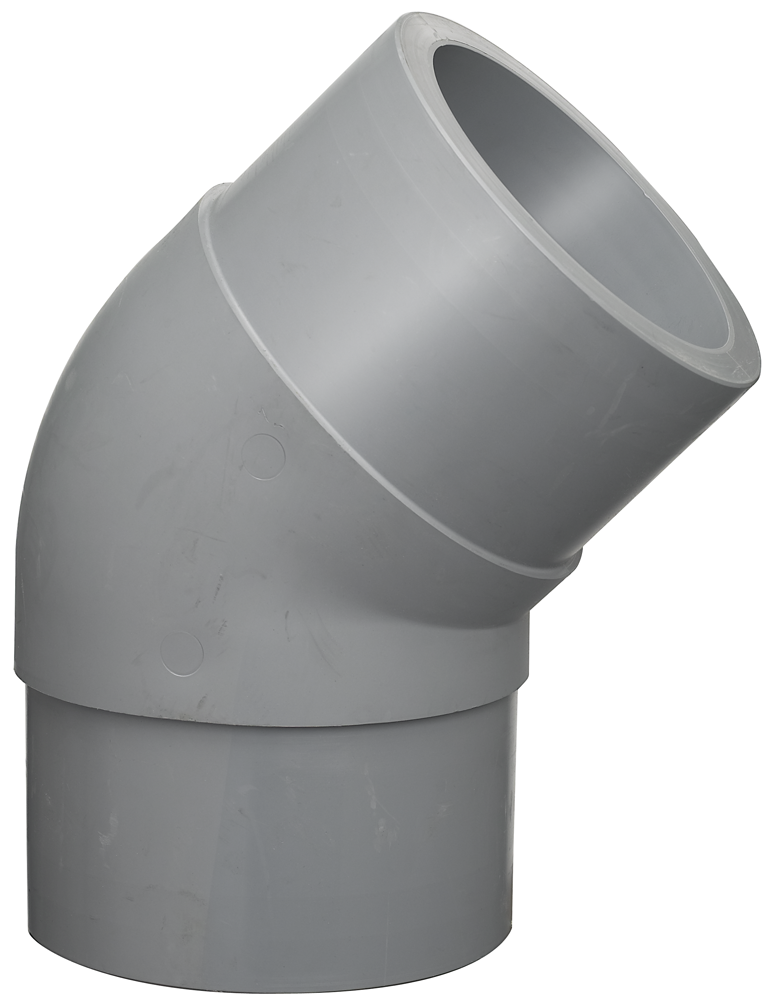

GF Instaflex Elbow BF

1151911GF INSTAFLEX ELBOW 45DEG D1251151908GF INSTAFLEX ELBOW 90DEG 1251151912GF INSTAFLEX ELBOW 45DEG D1601151909GF INSTAFLEX ELBOW 90DEG 1601151913GF INSTAFLEX ELBOW 45DEG D2251151910GF INSTAFLEX ELBOW 90DEG 2251151953GF INSTAFLEX ELBOW 45DEG D3151151949GF INSTAFLEX ELBOW 90DEG 315
Available formats: rfa, dwg 2D, dwg 3D, dxf, ifc, sat, fbx, obj.

Product details

Identity data
Manufacturer Part Number
1151953
Item no. GF
761065325
EAN
7611205909222
ETIM Class
EC003024
Data
Weight [kg]
14
Packing Quantity 1
1
Packing Quantity 2
2
Packing Units
pce
BIM Data
IFC Export As
IfcPipeFittingType
IFC Export Type
BEND
Classification Uniclass Pr Number
Pr_65_52_63_63
Classification Uniclass Pr Description
Pipes and fittings
Classification OmniClass 23 Number
23.27.43.00
Classification OmniClass 23 Description
Pipe Fittings
Revision
1.0
