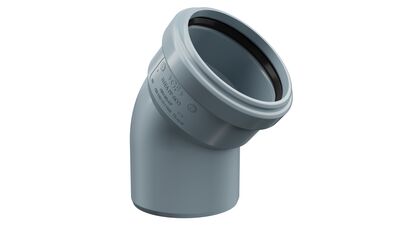

GF HTPP Elbow

1150121ELBOW PPB HT-PP 15° D32 EU1150122ELBOW PPB HT-PP 30° D32 EU1150123ELBOW PPB HT-PP 45° D32 EU1150124ELBOW PPB HT-PP 87,5° D32 EU1150125ELBOW PPB HT-PP 15° D40 EU1150126ELBOW PPB HT-PP 30° D40 EU1150127ELBOW PPB HT-PP 45° D40 EU1150129ELBOW PPB HT-PP 67,5° D40 EU1150128ELBOW PPB HT-PP 87,5° D40 EU1150130ELBOW PPB HT-PP 15° D50 EU1150131ELBOW PPB HT-PP 30° D50 EU1150132ELBOW PPB HT-PP 45° D50 EU1150133ELBOW PPB HT-PP 67,5° D50 EU1150134ELBOW PPB HT-PP 87,5° D50 EU1150135ELBOW PPB HT-PP 15° D75 EU1150136ELBOW PPB HT-PP 30° D75 EU1150137ELBOW PPB HT-PP 45° D75 EU1150138ELBOW PPB HT-PP 67,5° D75 EU1150139ELBOW PPB HT-PP 87,5° D75 EU1150140ELBOW PPB HT-PP 15° D110 EU1150141ELBOW PPB HT-PP 30° D110 EU1150142ELBOW PPB HT-PP 45° D110 EU1150143ELBOW PPB HT-PP 67,5° D110 EU1150144ELBOW PPB HT-PP 87,5° D110 EU1150145ELBOW PPB HT-PP 45° D125 EU1150146ELBOW PPB HT-PP 87,5° D125 EU1150882ELBOW PPB HT-PP 30° D160 EU1150147ELBOW PPB HT-PP 45° D160 EU1150148ELBOW PPB HT-PP 87,5° D160 EU
Tilgængelige formater : rfa, dwg 2D, dwg 3D, dxf, ifc, sat, fbx, obj.

Produktdetaljer

Identity data
Producentens varenummer
1150137
Item no. GF
4901107503221
Data
Emballagemængde 1
1
Emballagemængde 2
150
Pakkeenheder
stk
BIM Data
IFC Export As
IfcPipeFittingType
IFC Export Type
BEND
Klassifikation Uniclass Pr Nummer
Pr_65_52_63_66
Klassifikation Uniclass Pr Beskrivelse
Pipes and fittings
Klassifikation OmniClass 23 Nummer
23.27.43.00
Klassifikation OmniClass 23 Beskrivelse
Pipe Fittings
Klassifikation UniFormat 2010 Nummer
D2020
Klassifikation UniFormat 2010 Beskrivelse
Sanitary Drainage
Revision
1.0
