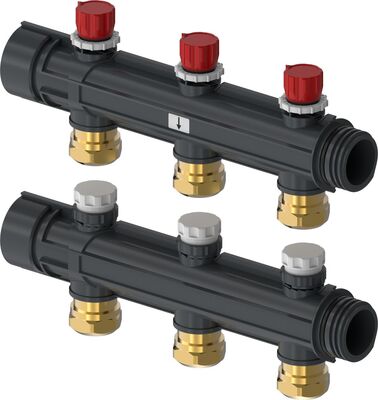

Uponor Magna manifold segment w. Valve Dim 25 LS

1121536UPONOR MAGNA MANIFOLD SEGMENT W. VALVE 2X251121537UPONOR MAGNA MANIFOLD SEGMENT W. VALVE 3X252x 1121536Uponor Magna manifold segment w. valve 4X 25 mm1121536; 1121537Uponor Magna manifold segment w. valve 5X 25 mm2x 1121537Uponor Magna manifold segment w. valve 6X 25 mm2x 1121537; 1121535Uponor Magna manifold segment w. valve 7X 25 mm1121536; 2x 1121537Uponor Magna manifold segment w. valve 8X 25 mm3x 1121537Uponor Magna manifold segment w. valve 9X 25 mm3x 1121537; 1121535Uponor Magna manifold segment w. valve 10X 25 mm3x 1121537; 1121536Uponor Magna manifold segment w. valve 11X 25 mm4x 1121537Uponor Magna manifold segment w. valve 12X 25 mm4x 1121537; 1121535Uponor Magna manifold segment w. valve 13X 25 mm4x 1121537; 1121536Uponor Magna manifold segment w. valve 14X 25 mm5x 1121537Uponor Magna manifold segment w. valve 15X 25 mm5x 1121537; 1121535Uponor Magna manifold segment w. valve 16X 25 mm5x 1121537; 1121536Uponor Magna manifold segment w. valve 17X 25 mm6x 1121537Uponor Magna manifold segment w. valve 18X 25 mm6x 1121537; 1121535Uponor Magna manifold segment w. valve 19X 25 mm6x 1121537; 1121536Uponor Magna manifold segment w. valve 20X 25 mm
Available formats: rfa, dwg 2D, dwg 3D, dxf, ifc, sat, fbx, obj.

Product details

Identity data
Manufacturer Part Number
1121537
Item no. GF
35001121537
EAN
6414905660421
ETIM Class
EC010292
Data
Weight [kg]
1.986
Packing Quantity 1
1
Packing Quantity 2
60
Packing Units
pce
BIM Data
IFC Export As
IfcDistributionFlowElementType
IFC Export Type
n/a
Classification Uniclass Pr Number
Pr_65_54_95_92
Classification Uniclass Pr Description
Underfloor heating and cooling manifolds
Classification OmniClass 23 Number
23.75.70.00
Classification OmniClass 23 Description
HVAC Distribution Devices
Classification UniFormat 2010 Number
D3020
Classification UniFormat 2010 Description
Heating Systems
Revision
1.0
