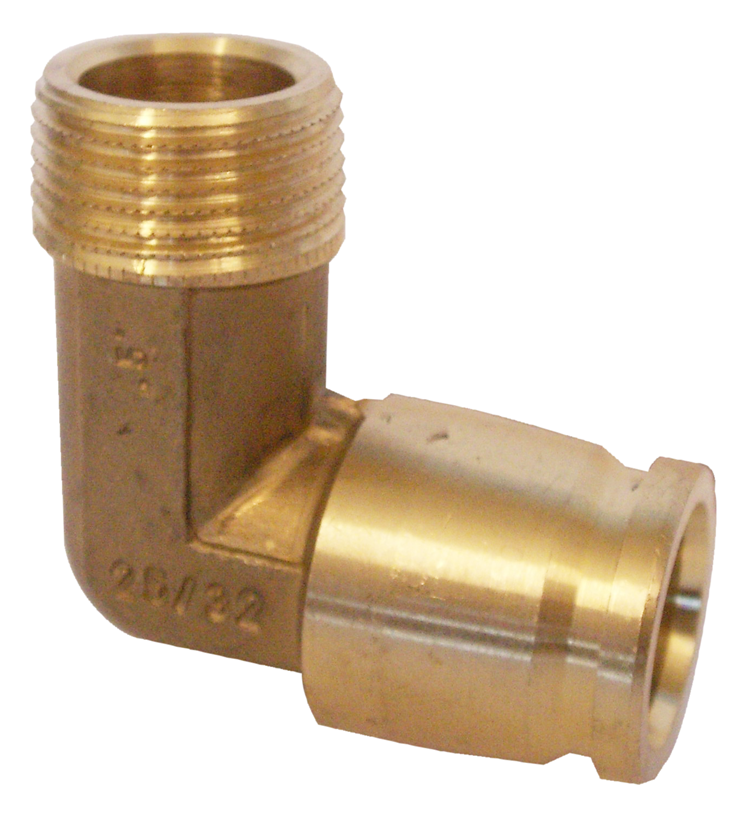

GF iFit Elbow MT Brass

1185848GF IFIT ELBOW 90° MT 16/20-1/2" PN161185850GF IFIT ELBOW 90° MT 16/20-3/4" PN161185852GF IFIT ELBOW 90° MT 25/32-1" PN161185853GF IFIT ELBOW 90° MT 25/32-3/4" PN16
Available formats: rfa, dwg 2D, dwg 3D, dxf, ifc, sat, fbx, obj.

Product details

Identity data
Manufacturer Part Number
1185853
Item no. GF
762102285
EAN
6414900225571
ETIM Class
EC003024
Data
Weight [kg]
0.189
Packing Quantity 1
2
Packing Quantity 2
20
Packing Units
pce
BIM Data
IFC Export As
IfcPipeFittingType
IFC Export Type
JUNCTION
Classification Uniclass Pr Number
Pr_65_52_63
Classification Uniclass Pr Description
Pipes and fittings
Classification OmniClass 23 Number
23.60.30.11.14
Classification OmniClass 23 Description
Pipework Fittings
Revision
1.0
