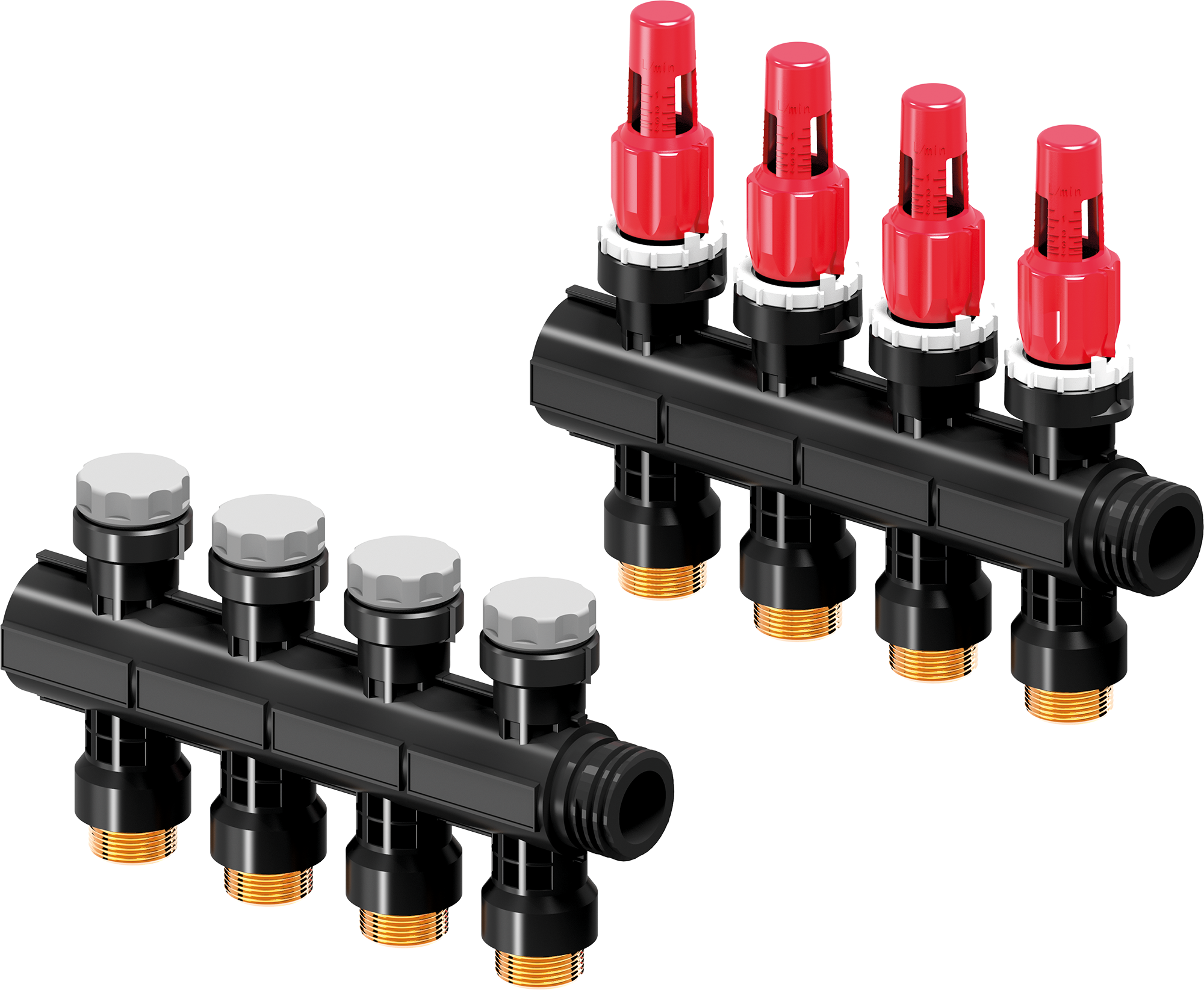

Uponor Vario PLUS manifold flowmeter

1030583UPONOR VARIO PLUS MANIFOLD FLOWMETER FM 3X3/4 EURO1030584UPONOR VARIO PLUS MANIFOLD FLOWMETER FM 4X3/4 EURO1030585UPONOR VARIO PLUS MANIFOLD FLOWMETER FM 6X3/4 EURO2x 1042471UPONOR VARIO PLUS MANIFOLD FLOWMETER FM 2X 3/4 EURO1042471; 1030584UPONOR VARIO PLUS MANIFOLD FLOWMETER FM 5X 3/4 EURO1030583; 1030584UPONOR VARIO PLUS MANIFOLD FLOWMETER FM 7X 3/4 EURO2x 1030584UPONOR VARIO PLUS MANIFOLD FLOWMETER FM 8X 3/4 EURO1030583; 1030585UPONOR VARIO PLUS MANIFOLD FLOWMETER FM 9X 3/4 EURO1030584; 1030585UPONOR VARIO PLUS MANIFOLD FLOWMETER FM 10X 3/4 EURO1042471; 1030584; 1030585UPONOR VARIO PLUS MANIFOLD FLOWMETER FM 11X 3/4 EURO2x 1030585UPONOR VARIO PLUS MANIFOLD FLOWMETER FM 12X 3/4 EURO1030583; 1030584; 1030585UPONOR VARIO PLUS MANIFOLD FLOWMETER FM 13X 3/4 EURO2x 1030584; 1030585UPONOR VARIO PLUS MANIFOLD FLOWMETER FM 14X 3/4 EURO
Available formats: rfa, dwg 2D, dwg 3D, dxf, ifc, sat, fbx, obj.

Product details

Identity data
Manufacturer Part Number
1030584; 1030585
EAN
4016203841346; 4016203841360
ETIM Class
EC010292
Data
Weight [kg]
2.492
Packing Quantity 1
1; 1
Packing Quantity 2
135; 93
Packing Units
pce
BIM Data
IFC Export As
IfcDistributionFlowElementType
IFC Export Type
n/a
Classification Uniclass Pr Number
Pr_65_54_95_92
Classification Uniclass Pr Description
Underfloor heating and cooling manifolds
Classification OmniClass 23 Number
23.75.70.00
Classification OmniClass 23 Description
HVAC Distribution Devices
Classification UniFormat 2010 Number
D3020
Classification UniFormat 2010 Description
Heating Systems
Revision
1.0
