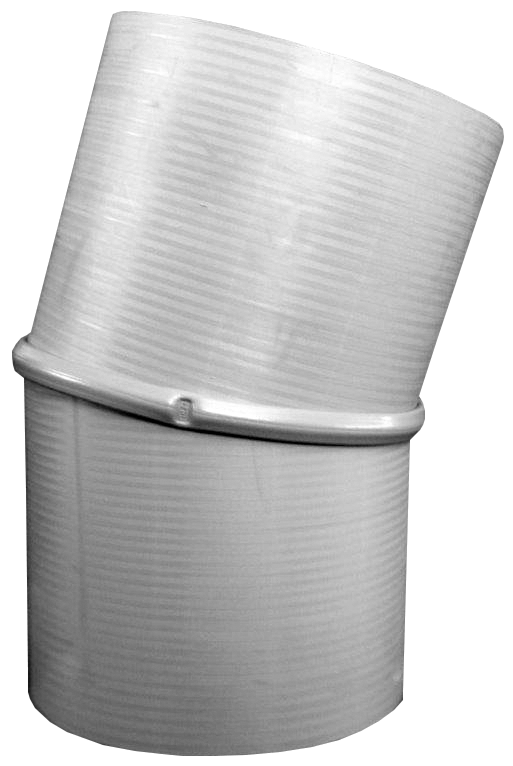

GF Instaflex Elbow EF-OR

1152509GF INSTAFLEX ELBOW 15DEG D631152510GF INSTAFLEX ELBOW 15DEG D751152511GF INSTAFLEX ELBOW 15DEG 1S 1L D901152512GF INSTAFLEX ELBOW 15DEG 1S 1L D1101152562GF INSTAFLEX ELBOW 35DEG D1101151939GF INSTAFLEX ELBOW 15DEG 2S D1251151942GF INSTAFLEX ELBOW 30DEG D1251151943GF INSTAFLEX ELBOW 30DEG D160
Available formats: rfa, dwg 2D, dwg 3D, dxf, ifc, sat, fbx, obj.

Product details

Identity data
Manufacturer Part Number
1152562
Item no. GF
761069665
EAN
7611205902346
ETIM Class
EC003024
Data
Weight [kg]
1.5
Packing Quantity 1
1
Packing Units
pce
BIM Data
IFC Export As
IfcPipeFittingType
IFC Export Type
BEND
Classification Uniclass Pr Number
Pr_65_52_63_60
Classification Uniclass Pr Description
Pipes and fittings
Classification OmniClass 23 Number
23.27.43.00
Classification OmniClass 23 Description
Pipe Fittings
Revision
1.0
